Tension power amplifier TF-30
Application Description:
TGF-30 is specially used for magnetic powder clutch brake. It adopts closed-loop control mode and digital control technology. The maximum output current is 3A and the current gear is adjustable. It is suitable for a variety of magnetic powder clutches. It has output short-circuit protection and safer and more reliable performance. Easy installation with card slot.
Hotline:021-60892191 Message
- Product description
- Performance parameter

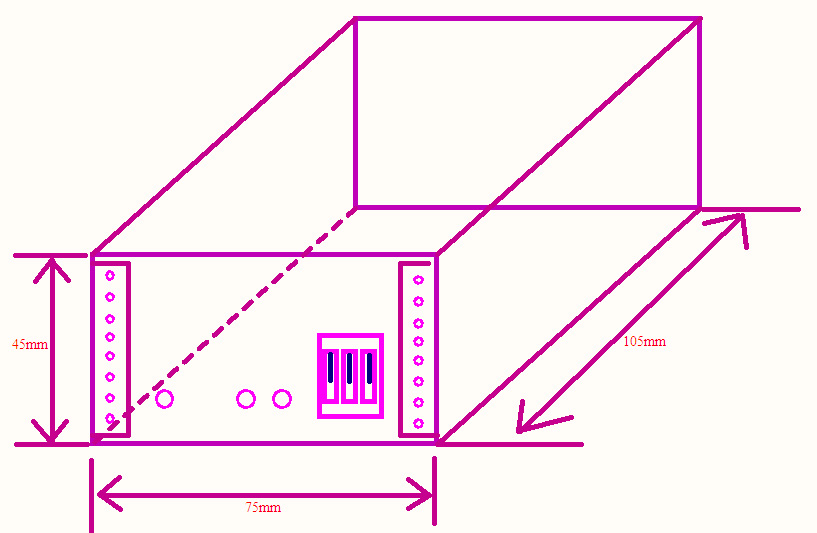

- Installation drawings

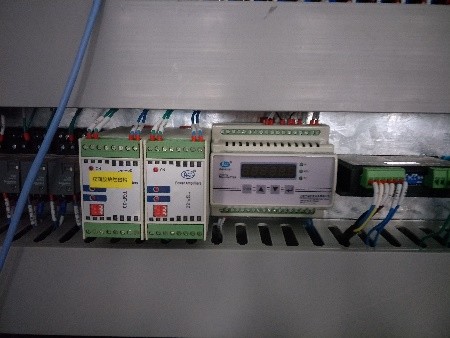

- Application site
- Download
TGF-30 is specially used for magnetic powder clutch brake. It adopts closed-loop control mode and digital control technology. The maximum output current is 3A and the current gear is adjustable. It is suitable for a variety of magnetic powder clutches. It has output short-circuit protection and safer and more reliable performance. Easy installation with card slot.
TGF-30 is widely used in printing, textile, printing and dyeing, plastic film, metal film and other unwinding, rewinding, slitting equipment.
TGF-30 is widely used in printing, textile, printing and dyeing, plastic film, metal film and other unwinding, rewinding, slitting equipment.
| Working voltage range | 24V～30V |
| Power consumption | 最大80W |
| Operating temperature | 5℃+60℃ |
| Working humidity | <85%Relative humidity |
| Control signal | 0~10VOr external 10 potentiometer adjustment |
| Output current | 0~3A |
| Linearity | 0.80% |
| Temperature Coefficient | ±85ppm/℃ |
| Dimensions | 105mm (length) x75mm (width) x45mm (height) |
| weight | 160g |
Manual.pdf
