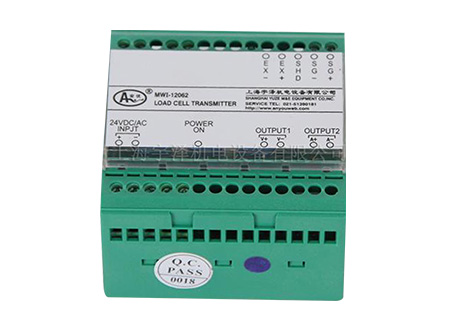

Tension amplifier MWI-12062
Application Description:
MWI-12062 is produced using advanced SMT technology. It has a small size, high resolution, high speed, two-stage active filtering, low power consumption, ultra-wide operating voltage, and multiple output formats to choose from. It also provides two outputs at the same time. Optional, suitable for the output signal transmission of various strain resistance sensors. Zero and gain adjustment are independent of each other.
Hotline:021-60892191 Message
- Product description
- Performance parameter

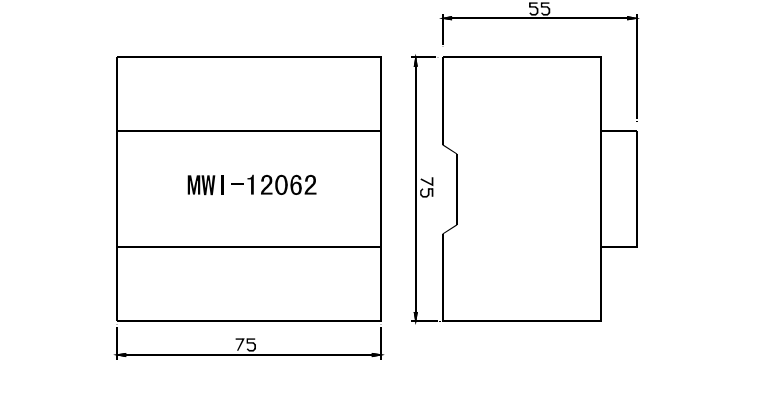

- Installation drawings
- Application site
- Download
MWI-12062 is produced using advanced SMT technology. It has a small size, high resolution, high speed, two-stage active filtering, low power consumption, ultra-wide operating voltage, and multiple output formats to choose from. It also provides two outputs at the same time. Optional, suitable for the output signal transmission of various strain resistance sensors. Zero and gain adjustment are independent of each other. The tension signal widely used in industrial process control systems is converted into standard high-precision analog signal output.
Features:
1.Small size, produced by advanced SMT technology;
2. With high-resolution, high-speed, two-stage active filtering function;
3. Low power consumption, ultra-wide operating voltage, multiple output modes to choose from;
4. It is suitable for the output signal transmission of various strain resistance sensors, and the zero and gain adjustment are independent of each other;
4. It is suitable for the output signal transmission of various strain resistance sensors, and the zero and gain adjustment are independent of each other;
| Working power | DC10-33V |
| power consumption | MAX 3W |
| Operating temperature | -5℃～+5℃ |
| Working humidity | ＜90% On humidity |
| Sensor form | All resistance strain gauges |
| Sensor excitation power | 10VDC ±1%/100mA |
| Input sensitivity | signal input0 ～ 30mA |
| Filtering | 1～ 90ms Tuning filter (10 levels optional) |
| Accuracy | 1 /65000 |
| Linearity | ≤0 .005% |
| Temperature Coefficient | ±25ppm/℃ |
| Output | 5mvpp |
| Zero adjustable range | 0～ 0mV |
| Adjustable range | 2-30mV Above is ten gear switch + adjustable resistance |
| Dimensions | 75mm (length) x 75mm (width) x 55mm (height) |
| weight | ≌ 125g |
