Tension display table DI-1020
Application Description:
This product has a small size, high resolution, high speed, two-stage active filtering, low power consumption, ultra-wide operating voltage, and multiple output modes to choose from.
Hotline:021-60892191 Message
- Product description
- Performance parameter

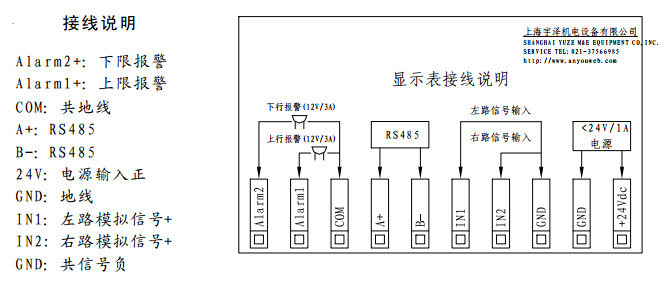

- Installation drawings

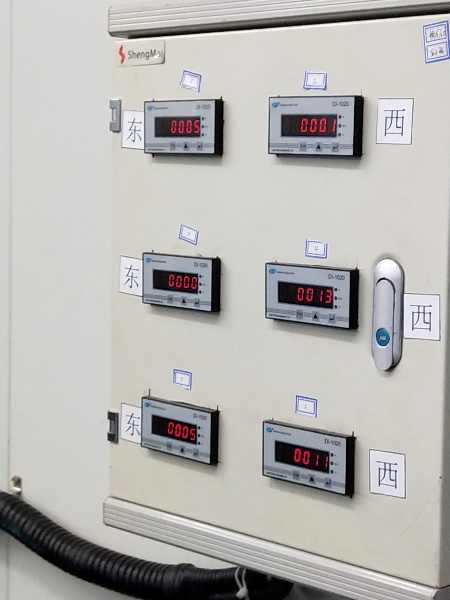

- Application site
- Download
This product has a small size, high resolution, high speed, two-stage active filtering, low power consumption, ultra-wide operating voltage, and multiple output modes to choose from.
Features:
1. The product has a small size;
2. With high resolution;
3. High-speed, two-stage active filtering function;
4. Low power consumption, ultra-wide operating voltage, multiple output modes to choose from.
| Working power | DC 24V |
| power consumption | MAX 10W |
| Operating temperature | ：-5℃～+5 ℃ |
| Working humidity | <90%Relative humidity |
| Analog input | DC0 10V |
| Digital input | RS485 |
| Input sensitivity | -0.5mV/V～3.5mV/V |
| Linearity | ≤0.0 % |
| Temperature Coefficient | ±25ppm/℃ |
| Installation method | Panel embedded |
|
Dimensions
|
106 mm (length) x 88 mm (width) x 63 mm (height) |
|
weight
|
≌ 150g |
Manual.pdf
