Correction controller DCN-5000
Application Description:
DCN-5000NET series correction controller is a full touch screen, networked, high-precision DSP control system. It can automatically control the edge, center line, color mark line and other positions of the strip material. Its main Composed of three parts: control panel, touch screen, and chassis, it can realize the edge-tracking control, centering control, track-tracking control and compound control of the strip-shaped material.
Hotline:021-60892191 Message
- Product description
- Performance parameter

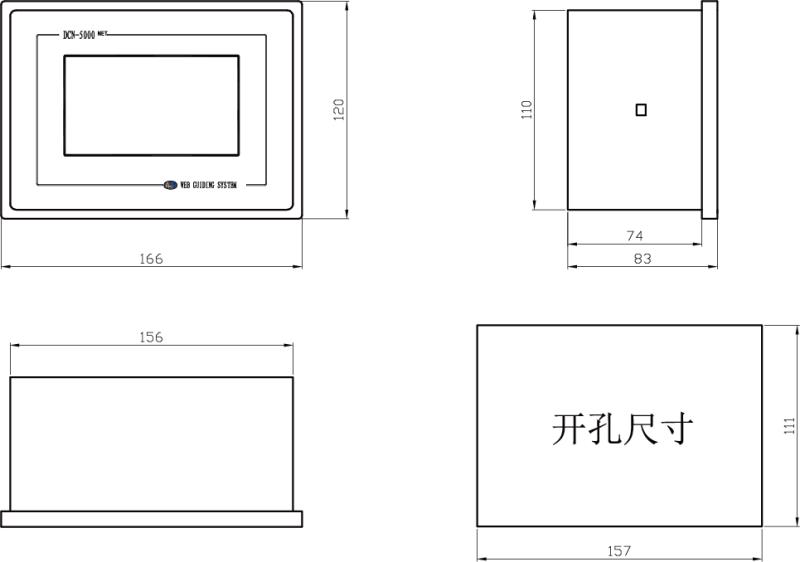

- Installation drawings
- Application site
- Download
DCN-5000NET series correction controller is a full touch screen, networked, high-precision DSP control system. It can automatically control the edge, center line, color mark line and other positions of the strip material. Its main Composed of three parts: control panel, touch screen, and chassis, it can realize the edge-tracking control, centering control, track-tracking control and compound control of the strip-shaped material.
Features:
Networked communication platform, RS485 communication between controllers and between controllers and upper computer, parameters and status can be set.
The use of multi-level management not only guarantees the one-key efficient setting of on-site users, but also guarantees the safety of setting parameters and avoids misoperation.
Using high-speed and highly integrated DSP dedicated processing chip, encoder feedback, PWM drive, superior and stable performance.
Full touch screen, beautiful and practical man-machine interface, easy to operate.
It contains functions such as edge tracking, line tracking, centering and compounding.
Support ultrasonic sensor, photoelectric sensor, CCD sensor.
Contains input and output terminal detection and protection functions to ensure long-term stable operation of the control board.
Reserve an external port, which can be connected to the remote control and sensor adjustment frame.
| Correction controller | DCN-5000 |
| Dimensions (length X width X height) | 160x120x83mm |
| Power supply | 24-48Vdc |
| Sensor signal input | 1. Single/dual 2 channels 0-5V analog 2. RS485 communication |
| Ambient temperature | 0～50℃ |
| Use environment humidity | 38～85%RH |
| Use environment | No flammable gas, no corrosion |
| Communication interface | RS485 |
