HomeProductCorrection systemDeviation driver

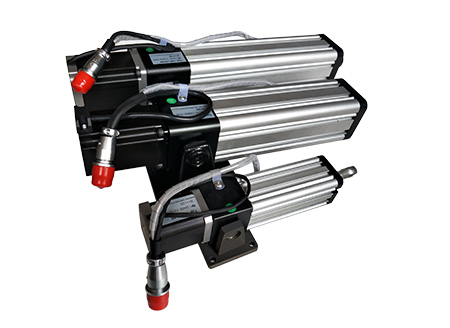

Linear drive
Application Description:
With its own travel limit, it is easy to install. With optional accessories, it has multiple installation methods and is suitable for different installation requirements.
Hotline:021-60892191 Message
- Product description
- Performance parameter
- Installation drawings

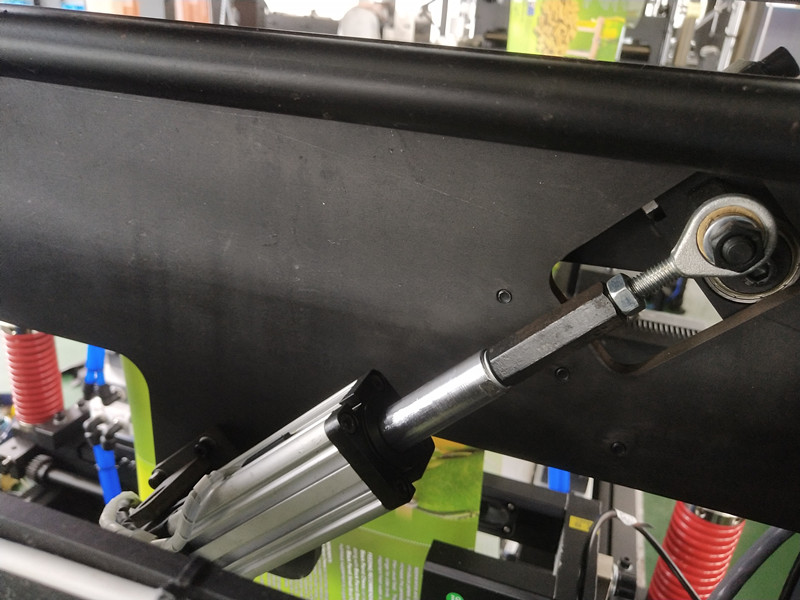

- Application site
- Download
1. Aviation plug connection, convenient and safe
2. Zero-gap synchronous output of drive motor, high response frequency
3. Multiple installation methods, suitable for most driving occasions
4. The running characteristics (acceleration, stroke, reset midpoint) are completely controlled by the correction control setting parameters, without the need for external switches, etc.
5. According to user requirements, DC servo motors imported from Germany can be configured with stable output and low noise.
6. Mainly used for winding, unwinding and guiding mechanism, convenient installation
|
Stroke（mm） （Stroke） |
L（mm） |
Maximum speed（mm/sec） Max speed（mm/sec） |
Thrust（N） Max thrust（N） |
| 100 | 281 | 18 | 1500 |
| 150 | 331 | 18 | 1500 |
| 200 | 381 | 18 | 1500 |
| 300 | 481 | 18 | 1500 |
| 500 | 701 | 18 | 1500 |
Manual.pdf
CAD.dwg
