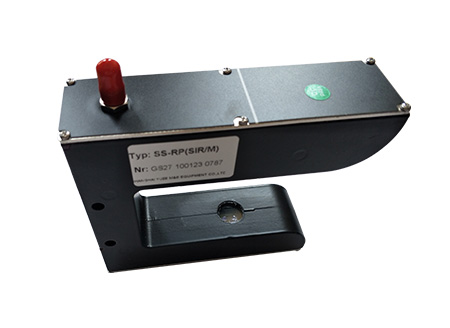

Infrared probe
Application Description:
SS-RP infrared sensor is an analog output sensor. It is mainly used for the correction control of coils. It is suitable for translucent and opaque materials.
Hotline:021-60892191 Message
- Product description
- Performance parameter

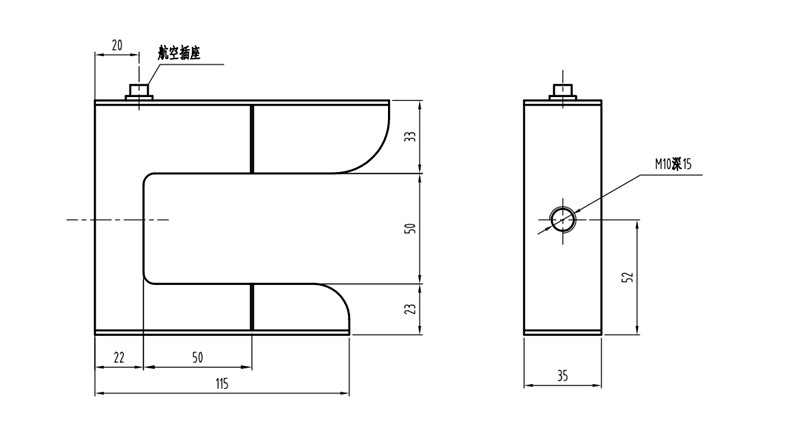

- Installation drawings

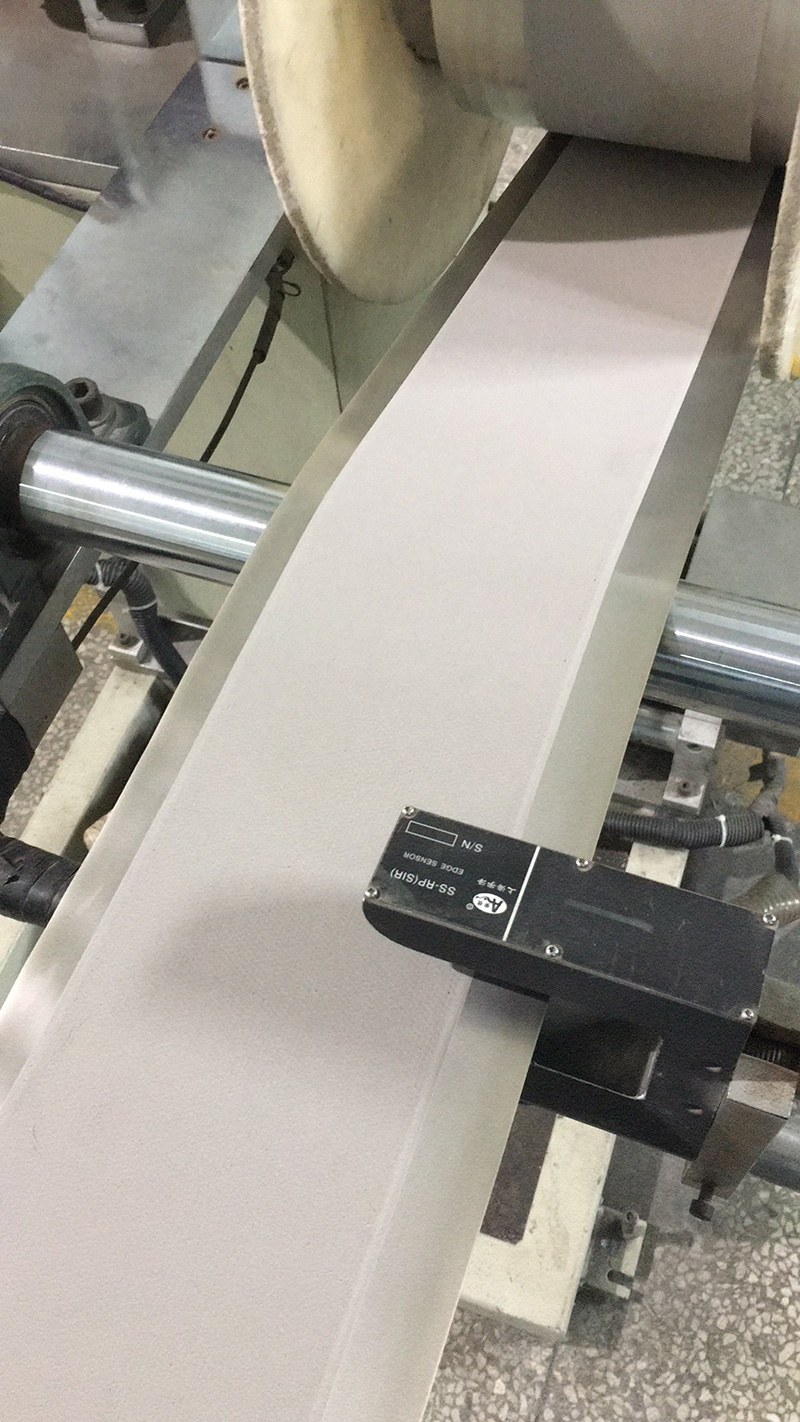

- Application site
- Download
SS-RP infrared sensor is an analog output sensor. It is mainly used for the correction control of coils. It is suitable for translucent and opaque materials.
This type of sensor is mainly used for edge / center correction control of coils. It is suitable for opaque or transparent materials. Is now widely used in rewinding machines, laminating machines, slitting machines, coating machines and other equipment, winding and unwinding correction control.
Features:
This type of sensor is a square reflective photoelectric sensor with infrared light induction and resistance to ambient light interference. It is mainly used for edge / following and correction control of coils. It is suitable for opaque materials or translucent materials.
Is now widely used in rewinding machines, laminating machines, slitting machines, coating machines and other equipment, winding and unwinding correction control.
| project | specification |
| Correction sensor | SS-RP(SIR/M) |
| Dimensions (length x width x height) | 115x35x106 |
| Working power | +12V 30mA |
| scope of test | 16mm |
| Detection method | On the net |
| output method | 0-5V(Analog voltage output) |
| Detection accuracy | ≤±0.01mm |
Manual.pdf
CAD.dwg
3D.STEP
